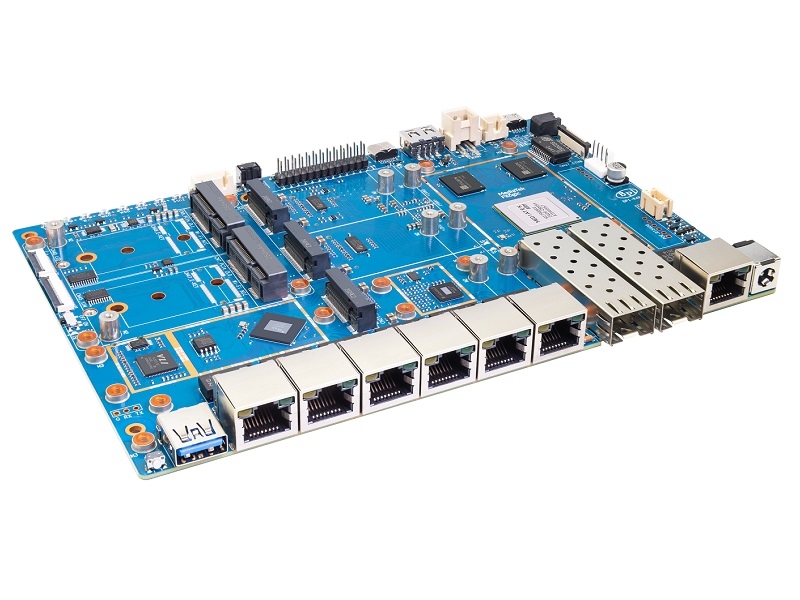

Banana Pi BPI-R4Pro Router board with MediaTek MT7988A(Filogic 880) Quad-core ARM Corex-A73 design ,4GB/8GB DDR4 RAM,8GB eMMC,256MB SPI-NAND flash onboard.It supports 4 x 2.5G network ports and 2 x 10G SFP+/RJ45 ports, support 4G/5G expansion。it is a update version for BPI-R4.
Key Features：
* MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor
* 8GB DDR4
* 8GB eMMC flash
* 256MB SPI-NAND Flash
* Micro SD card slot
* 1x 10G SFP WAN
* 1x 10G RJ45 WAN(combo with 10G SFP WAN)
* 1x 10G SFP LAN
* 1x 10G RJ45 LAN(combo with 10G SFP LAN)
* 4x 2.5G RJ45 LAN
* 1x 1G RJ45 LAN
* 1x 1G LAN(FPC Connector)
* 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
* 2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)
* 3x M.2 B-KEY slots with USB3.2 for 5G Module
* 1x USB3.2 slot
* 1x USB2.0 slot
* 1x USB TypeC Debug Console
* 2x13 PIN Header for expanding application
Application:
* Internet service Router
* Wifi7 Wireless Router
* 4G/5G Wireless Router
* Wireless Repeater
* Home security Gateway
* Home Automation
* Nas device
* Network and communication applications

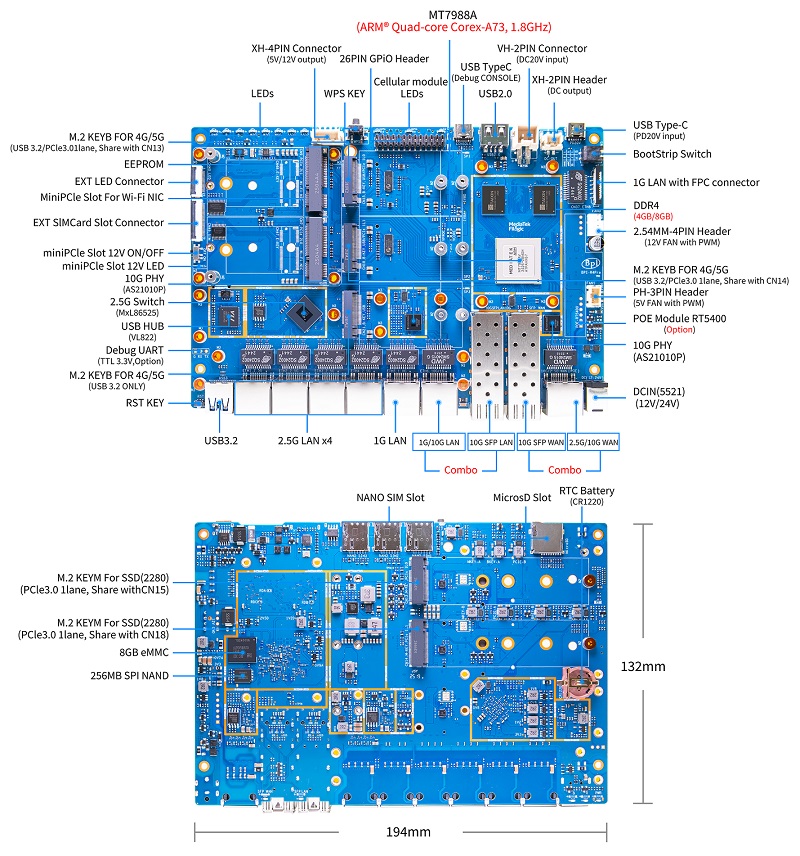

Hardware interface:
Online Wiki documents: https://docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro
Hardware interface:
Online Wiki documents: https://docs.banana-pi.org/en/BPI-R4_Pro/BananaPi_BPI-R4_Pro
