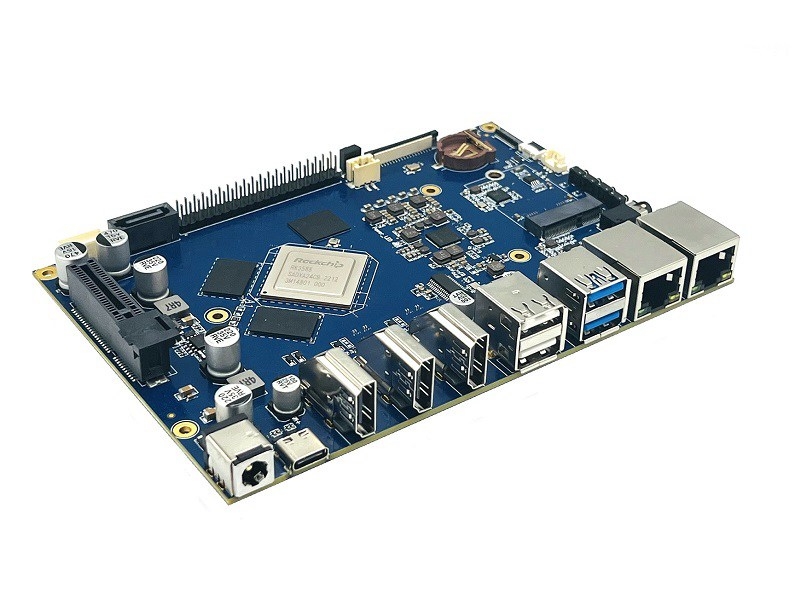

The Banana Pi BPI-W3 is a router based development board, it design with Rochchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor. ,6Tops@INT8 NPU,8G memory,32G eMMC storage on board .which can run on a variety of open source operating systems including OpenWrt, Android, and linux. It has 1 Gigabit LAN ports, 1 Gigabit WAN., it also with 2 HDMI out and 1 HDMI in port.

Key Features：
* Rockchip RK3588 quad ARM Cortex-A76 and quad Cortex-A55 consists of an eight-core CPU processor
* ARM Mali-G610 MP4,
* NPU for AI : 6Tops@INT8
* 8G RAM and 32G eMMC flash onbord
* 1x 2.5Gbps Ethernet
* support HDMI in and HDMI out

Hardware interface:



Banana Pi BPI-W3 use LGA core board design ,default with 8GB RAM and 32GB eMMC,The LGA BGA core board in interface led to the RK3588 all IO definition, can support RK3588 all definition interface, can be easily modified to support the application you want. Flexible customization。

Onboard LGA BGA core board:



Online wiki documents:https://wiki.banana-pi.org/Banana_Pi_BPI-W3

Banana Pi open source community complete the full Industrial grade and Automotive grade verificationthe base on Rockchip RK3588M/3588J, And completed mass production.
