STEAM education

Banana Pi BPI:bit Lite Webduino and arduino board with EPS32-S2 for STEAM education

ESP32-S2
25 full-color LED lights
1 temperature sensor
1 buzze
2 photosensitive sensors
Two on the front and one programmable button on the back
Type-C USB interface
size 5x5cm
The Goldfinger definition is fully compatible with Micro: Bit

    BPI:Bit V2 development board is a successor to BPI:Bit, inheriting most of the core hardware functions.Support Webduino, Arduino, MicroPython programming environment suitable for STEAM education.

    key features:

    ESP32-S2
    25 full-color LED lights
    1 temperature sensor
    1 buzze
    2 photosensitive sensors
    Two on the front and one programmable button on the back
    Type-C USB interface
    size 5x5cm
    The Goldfinger definition is fully compatible with Micro: Bit

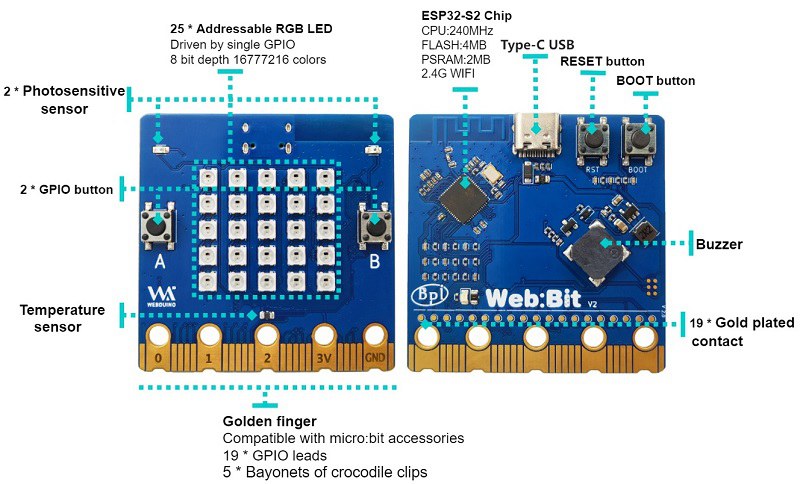

    BPI-Bit Lite Hardware interface:

    BPI:Bit Lite specification
    SoC ESP32-S2FN4R2,Xtensa® 32 bit LX7 Single-Core Processer
    frequency 240MHz MAX
    operating temperature -40℃~+85℃
    ROM 128 KB
    SRAM 320 KB
    FLASH ROM 4 MB
    PSRAM 2 MB
    WIFI IEEE 802.11 b/g/n ,2.4Ghz
    GPIO 19 available GPIO pins have been introduced and peripheral functions are available:ADC,TOUCH,PWM,SPI,I2C,I2S,Pulse counter, RMT,TWAI® Controller,SD/MMC,LCD_CAMERA
    external crystal 40Mhz
    Buzzer 8.5x8.5mm buzzer
    LED 25 Series full color LED lamp, single line GPIO control; 1 monochrome LED, CONTROLLED by GPIO
    photosensitive sensor 2 photosensitive sensor
    photosensitive sensor 1 photosensitive sensor
    IO 19pins 19 pin Goldfinger IO(Compatible with Micro :bit accessories ),Crocodile clip bayonet with 19 pin contacts on the back
    Key 2 Programmable buttons,1 BOOT botton,1 reset key
    USB USB Type-C interface,full speed USB OTG,USB-ACM
    operating voltage 3.3V
    Power USB Type-C input 5V,or Goldfinger IO input 3.3V power supply
    size 5 * 5 cm
    Goldfinger GPIP define:
    BPI:Bit V2 Gold finger GPIO is defined to be compatible with Micro :Bit. GPIO expansion board accessories can be used with Micro: Bit.


    Welcome for OEM&ODM , we full support STEAM education project

    Online wiki documents: https://wiki.banana-pi.org/BPI-Bit_Lite
