Single board computer

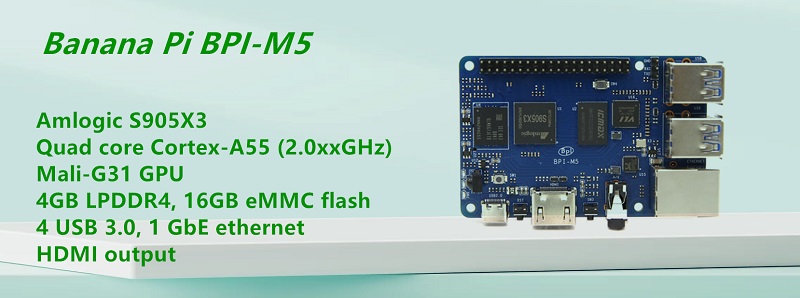

Banana Pi BPI-M5 with Amlogic S905x3 chip design, 4GB RAM and 16GB eMMC

  • Amlogic S905X3 quad core Cortex-A55 (2.0xxGHz)
  • Mali-G31 GPU
  • 4GB LPDDR4
  • 16GB eMMC flash
  • 4 USB 3.0
  • 1 GbE ethernet
  • HDMI output


    Banana Pi BPI-M5 is a new generation single board computer design , use Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor. Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz). BPI-M5 will come with 4GB LPDDR4 RAM, 16GB eMMC flash, and offers four USB 3.0 ports, one Gigabit Ethernet port, and on HDMI 2.1 output port for 4K video output.

    BPI-M5 The Next Generation Single Board Computer From Banana Pi:

    Hardware interface:



    Hardware spec:
    HardWare Specification of Banana pi BPI-M5
    CPU Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz)
    GPU Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)
    Memory 4 GB LPDDR4
    Storage MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB
    Network 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle
    Video Output(s) 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID)
    Audio Output(s) 3.5mm jack and 1 x HDMI digital output
    USB ports USB 3.0 PORT (x4)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM
    Switches Reset, Power and U-boot
    LED Power Status and Activity status
    Power Source 5 volt @3A via Micro USB (TYPE C)
    Size & Weight 92x60mm, 48g
    OS Android and Linux
    Online wiki development document: https://wiki.banana-pi.org/Banana_Pi_BPI-M5
